LDM IR20 Micro Case

IR Lasers

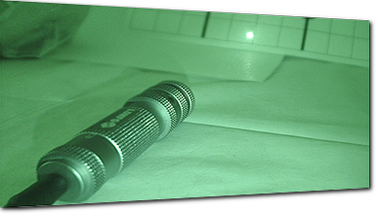

The LDM-IR20 incorporates 850nm or 980nm Infrared module with a constant On-Off push button switch leaving your hand free to hold your weapon instead of a wire.  One push of the button is all you need to activate the laser designator. The highly visible (through a NV unit) dot is able to be seen at distances up to 1/2 mile (conditions permitting). 850nm wavelength able to be displayed on almost all NV units with minimal trace. Slim line case  3.5 inch total length x 3/4 inch width so it will fit a full size-compact pistol and any type of rifle shotgun with a rail. 980nm wavelength leaves no visible red trace but is not compatible with all NV units. Constant On-Off locking push button switch along with a remote momentary wire switch. Enough power to reach 300yds+. Small Dot that will not over-power the targeted area even at close range. Dot will not cause ballooning, flair, haze or cotton balling when viewed through your NV or CCD unit.

Case material: 6160 T6 Series machined aircraft aluminum with black anodized military hard coated finish. High impact, chemically resistant engineered polymer laser housing.
Output Power: 20 mW @ 980 nm IIIb and 30 mW @ 850 nm IIIb
Lens: High temperature, Shock mounted, Impact resistant, Boro Float Glass lens.
Battery: One (1) CR123A 3  Volt  1500mah
MTTF (Mean Time To Fail): 5,000 hours
Max  Beam Diameter: 12 mm at 300 yds
Dimensions: 84mm (3.3 in) X 25 mm (0.98 in) front 22mm (0.86 in) rear
