Combo Lasers

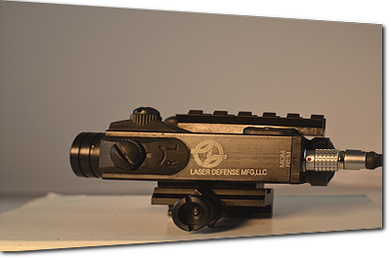

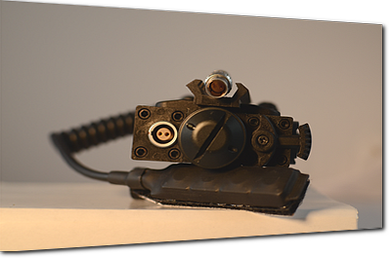

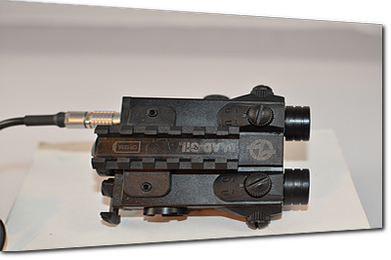

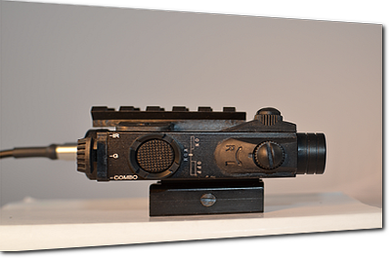

Dual Laser Aiming Device (DLAD-GI) laser designator system.
This next generation dual laser aiming device is configured for military and law enforcement applications. High power infrared DLAD-GI unit that is equipped with a high power visible (532nm) 20mW Green visible laser and 30mW infrared 835nM laser based target designator. The high power laser target designator has an effective range of between 4 and 6 kilometers, depending on atmospheric conditions.
The DLAD-GI laser target designator can be adjusted for windage and elevation very easily and fast for aligning the laser accuracy at various distances. The laser illuminator can also be adjusted along the X-axis and Y-axis for purposes of aligning the area of illumination to the weapon sight. The DLAD-GI can be mounted on any NATO 1913/Picatinney rail equipped weapon using the included A.R.M.S. throw lever mount. The built-in base allows the laser to be removed and reattached to the weapon without losing alignment of the laser.
The DLAD-GI meets current U.S. specifications for environmental conditions. The unit survives temperature extremes between -10C to +51C, is able to endure rough handling and vibration without loss of zero and is capable of withstanding a shock of up to 10g. The aircraft grade 6000-T6 aluminum housing is Class III, Type II anodized with a flat black hard coat Mil-Spec finish.
The DLAD-GI kit contains Infrared Laser Sight and Green Laser Sight integrated combo, screwdriver,
2pcs LR1N(1.5V) lithium batteries, or 1pcs CR12600SE(3V) lithium batteries and User manual.

Type: Aiming: Diode Class IIIb
Illuminator: Diode Class IIIb
Output Power:Aiming/High Power: 20 mw Illuminator/High Power: 30 mW
Peak Wavelength:Aiming: 532 nm Illuminator: 835 nm
Beam Diameter:Aiming: 5mm @ 25 yds
Range of Visible Illumination:Aiming/daylight: up to 450 yd
Aiming/low-light: up to 1,200 yd  w/o optic magnification
Illuminator: between 4,500-6,000 yds
Mount:Picatinny compatible throw lever mount
Power Source:2pcs LR1N(1.5V) lithium or 1pcs CR12600SE(3V) lithium
Runtime:2.5 Hours
Operating Temperature Range:-10°C to +51°C
Housing Size:68.5mm x 25mm x 55mm (L x H x W)
Weight with Batteries: 4.72 oz
